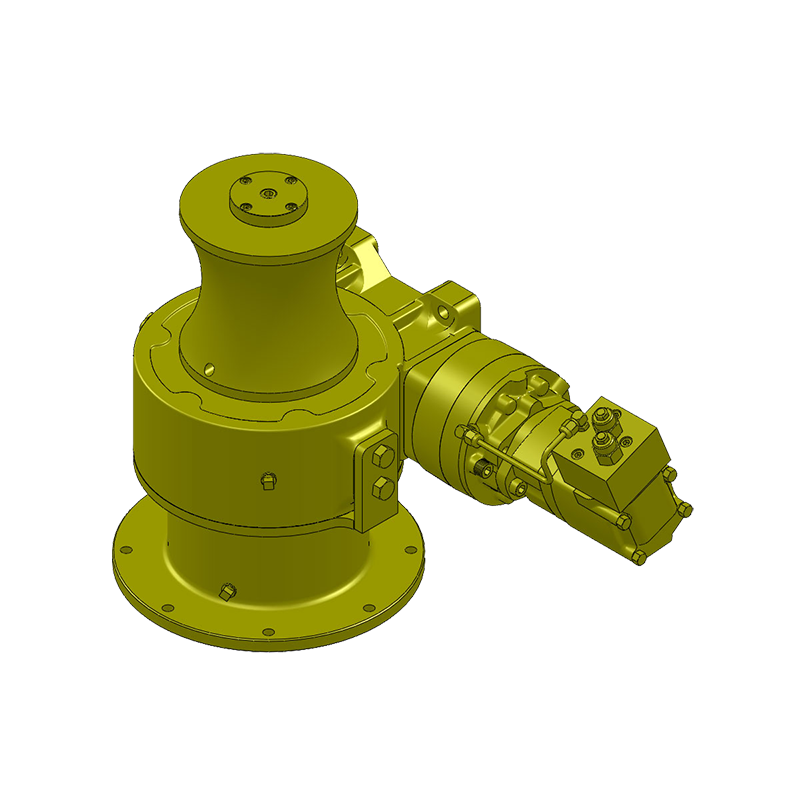

Series 1400 Capstans

Models: 1400 Cap, 1400V Cap, 1400K Cap, 1400KV Cap

Capacity: up to 7800 lbs

Series 1400 capstan winches are specifically designed to handle the daily needs of the utility industry.The capstan winches provide optimum performance in marine applications and environments. Bloom Capstan Winches are commonly used as pot and net haulers, and for dock and barge applications.

Request More Information

Documents & Videos for the Series 1400 Capstans

Series 1400 Capstans Features

  • Gear Case

    Made of high strength cast iron. Completely sealed for oil enclosed operation and to keep dirt out.

  • Worm Shaft

    One piece alloy steel hardened and ground to insure long service.

  • Worm Gear

    High tensile aluminum-nickel alloy bronze. Use of optimum lead and pressure angles transmit maximum power to the drum efficiently.

  • Gear Ratio

    25:1 and 12.5:1 ratios provide optimum efficiency in power and speed.

  • Bearings

    Worm gear and worm shaft run on tapered roller bearings in an oil enclosed gear case.

  • Output Shaft

    2-1/4” diameter heat -treated alloy steel minimum tensile strength 150,000 psi.

  • Capstan

    Cast aluminum - keyed to shaft.

  • Motor Mount

    SAE(A) 2-bolt flange. 1 1/4” woodruff keyed motor shaft. Motor is directly coupled into worm shaft. No separate coupling required.

  • Optional K Brake (1400 K Cap)

    Optional spring applied hydraulic release fail-safe brake automatically holds load when hydraulic pressure is released.

  • Motor Brake (1400KV Cap Only)

    DUET-SAFE® Double Action Braking System combines a powerful spring applied, hydraulic released motor-brake with a double counter balance brake valve to automatically hold loads when hydraulic pressure is released and control speed during lowering operations. Winch is ideal for high-speed pulling applications or wherever load holding is critical.

  • Models

    14-6.2-SR-CAP-25 , 14-6.2-SR-CAP-12.5
