Series 1000 Galvanized

Models: 1000 Galv, 1000 Vanging Galv, 1000C Galv, 1000HC Galv, 1000KC Galv

Capacity: up to 12000 lbs

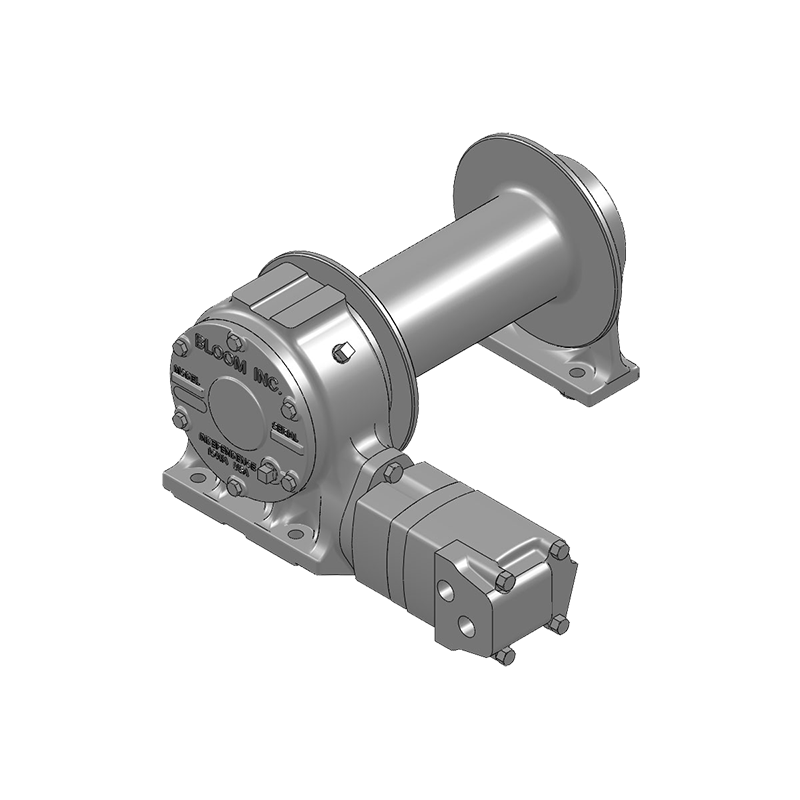

The rugged construction and versatility of Series 1000 Galv makes it adaptable to a wide range of applications. Series 1000 direct drive winches are used for industrial pulling and dragging applications including rear load waste packers, drill rigs, fishing boats, marine craft.

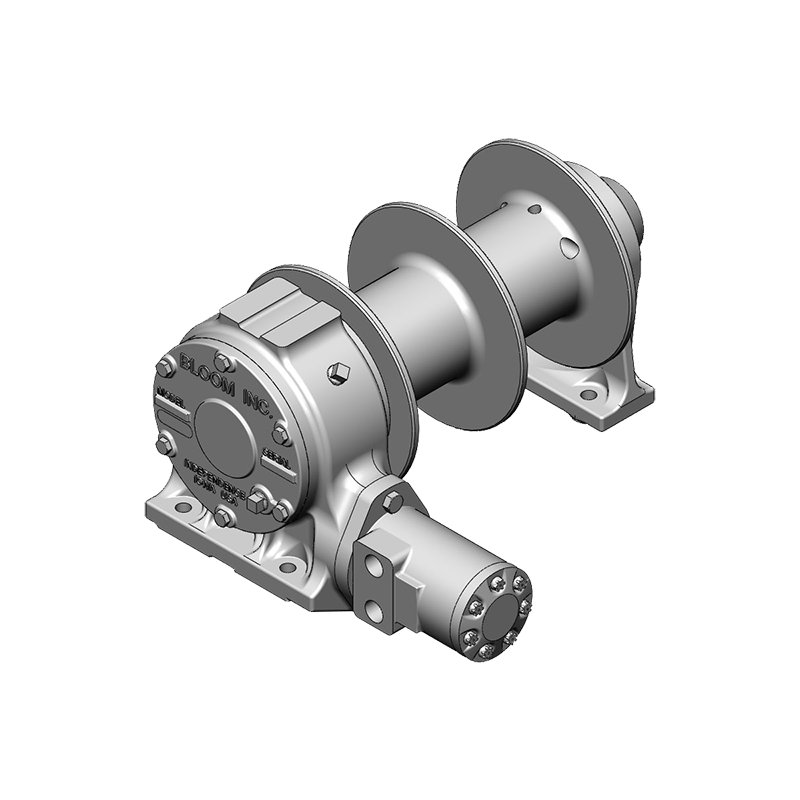

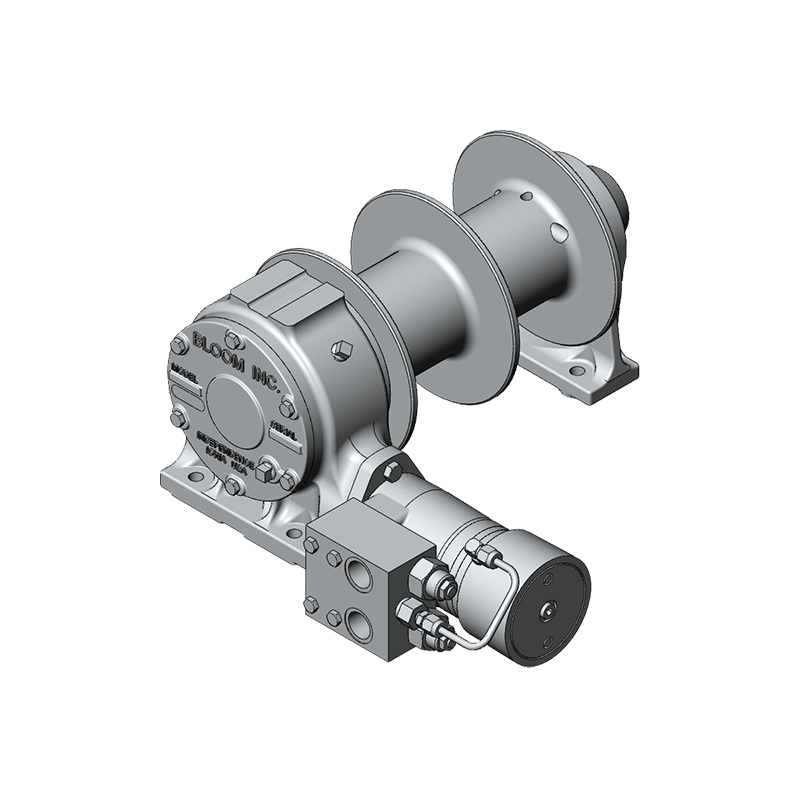

Series 1000 Vanging Galv direct drive winches are used for pulling and dragging applications on fishing boats and marine craft.

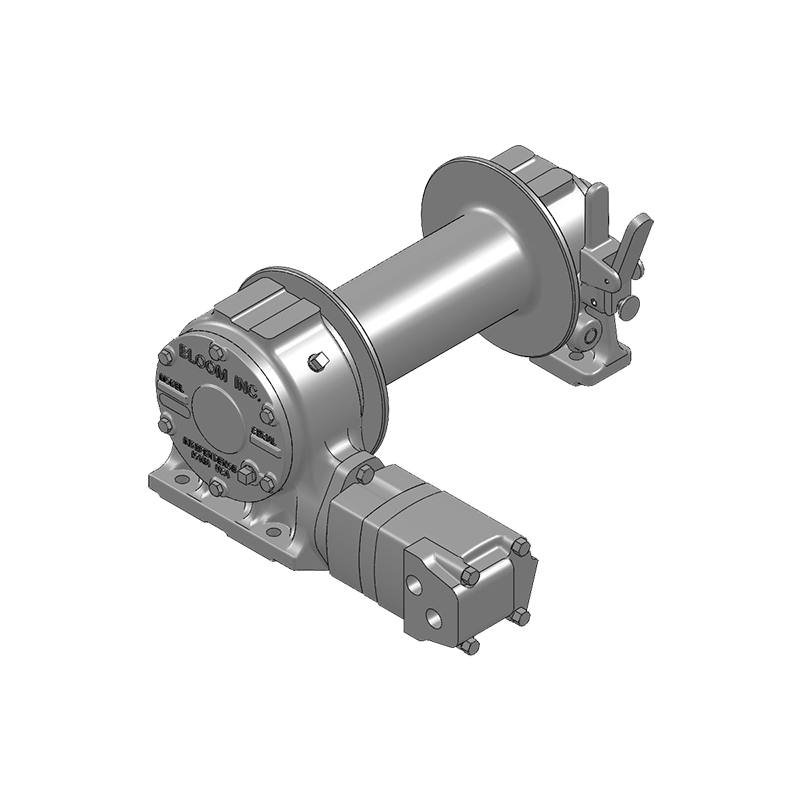

Series 1000KC Galv, 1000HC Galv 1000C Galv winches are equipped with a sliding clutch to allow free-spooling of the drum for industrial pulling and dragging applications including rear of cab and front mounting on ½ to 1½ ton trucks, flat bed trailers, factory material handling, mining and logging operations, air freight pullers, off the road tractors, aboard ships and boats.

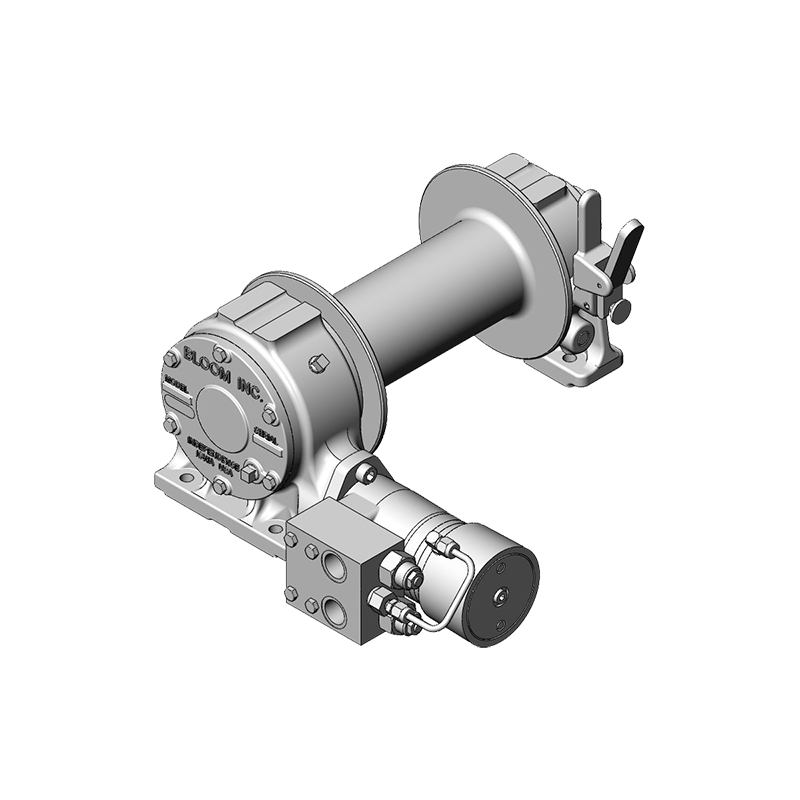

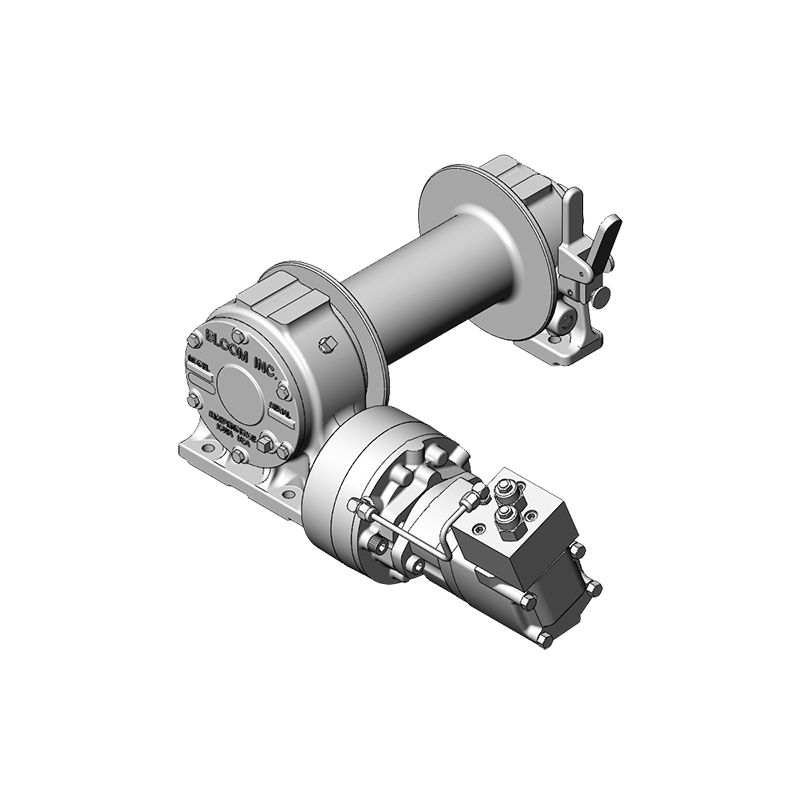

Series 1000KC Galv and 1000HC Galv are equipped with hydraulic fail-safe brake.

Request More Information

Series 1000 Galvanized Features

  • Gear Case

    Made of high strength cast iron. Completely sealed for oil enclosed operation and to keep dirt out.

  • Worm Shaft

    One piece alloy steel hardened and ground for extra durability. Compact design allows hydraulic motor to be coupled directly to worm.

  • Worm Gear

    High tensile aluminum-nickel alloy bronze. Optimum lead and pressure angles transmit maximum power to the drum.

  • Gear Ratio

    20:1 standard, 10:1, 27:1, 40:1 optional ratios provide optimum efficiency in power and speed.

  • Bearings

    Worm gear and worm shaft run on tapered roller bearings. Outer end housing has sealed ball bearing.

  • Cable Drum

    Tough all steel construction resists breakage or warping.

  • Clutch Option (1000C Galv, 1000HC Galv, 1000KC Galv)

    The Series 1000 Galvanized winches comes equipped with heat-treated dog type clutch to provide free-spooling of the winch drum. Positive lock-in and lock-out.

  • Motor-Brake (1000HC Galv, 1000KC Galv)

    DUET-SAFE® Double Action Braking System combines a powerful spring applied, hydraulic released motor-brake with a double counter balance brake valve to automatically hold loads when hydraulic pressure is released and control speed during lowering operations. Winch is ideal for high-speed pulling applications or wherever load holding is critical.

  • Drum Shaft

    1-1/2” diameter heat -treated alloy steel minimum tensile strength 150,000 psi.
