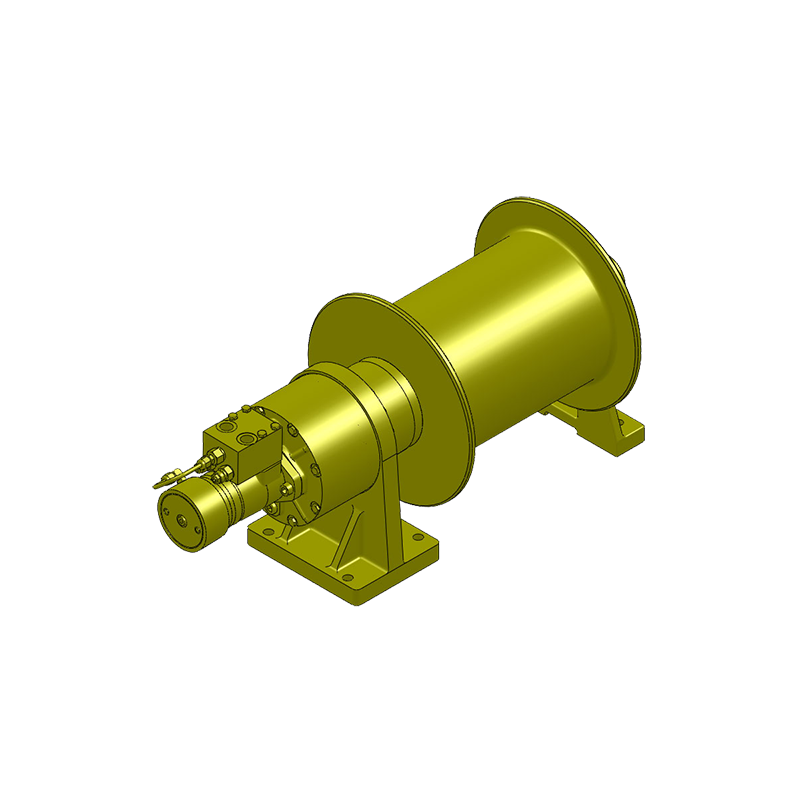

Series LS21

Series LS21 Features

• Gear Case

  Made of high strength cast iron. Completely sealed for oil enclosed operation and to keep dirt out.

• Planetary Gear

  High Efficiency Double Reduction – Rugged - Built to Last.

• Gear Ratio

  17:1 standard.

• Bearings

  Drum Shaft is supported by two heavy duty oil lubricated bearings in gear case, and one permanently sealed ball bearing in end housing.

• Drum Shaft

  2-1/4” diameter heat-treated alloy steel minimum tensile strength 150,000 psi.

• Cable Drum

  Tough all steel construction resists breakage or warping.

• Brake

  DUET-SAFE® Double Action Braking System combines a powerful spring applied, hydraulic released motor-brake with a double counter balance brake valve to automatically hold loads when hydraulic pressure is released and control speed during lowering operations. Winch is ideal for high-speed pulling applications or wherever load holding is critical.

• Counterbalance Valve

  Adds additional safety and load handling capabilities to winch.

• Models

  LS21H-3.0T-S1410-17 , LS21H-3.0T-L1410-17 , LS21H-6.2T-S1410-17 , LS21H-6.2T-L1410-17 , LS21H-9.6T-S1410-17 , LS21H-9.6T-L1410-17 , LS21H-11.9T-S1410-17 , LS21H-11.9T-L1410-17 , LS21K-4.9M-S1410-17 , LS21K-4.9M-L1410-17 , LS21K-6.2M-S1410-17 , LS21K-6.2M-L1410-17 , LS21K-8.0M-S1410-17 , LS21K-8.0M-L1410-17 , LS21K-9.6M-S1410-17 , LS21K-9.6M-L1410-17 , LS21K-11.9M-S1410-17 , LS21K-11.9M-L1410-17
