Series LS10 Galvanized

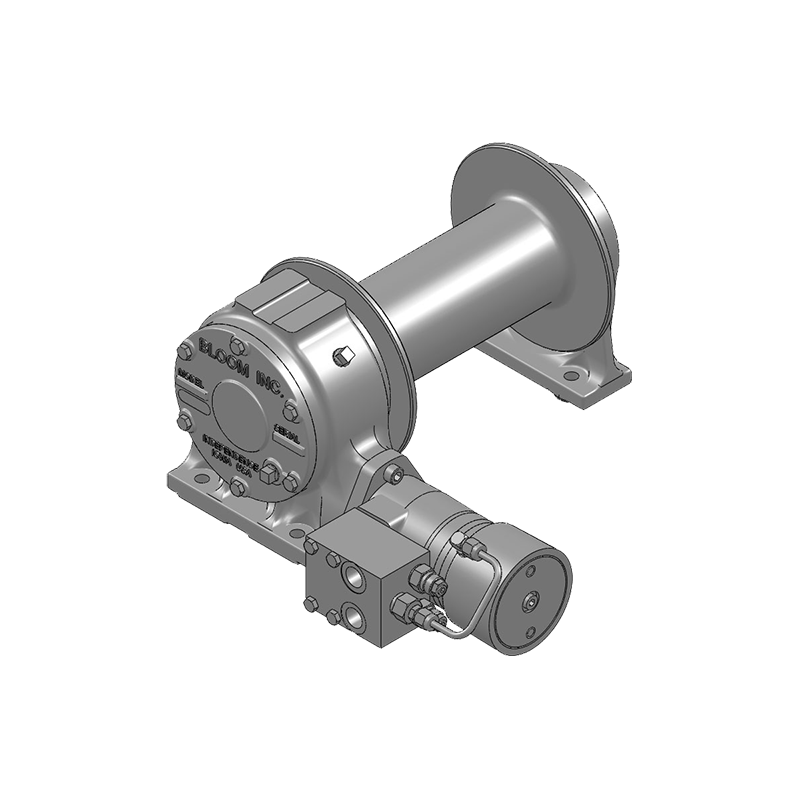

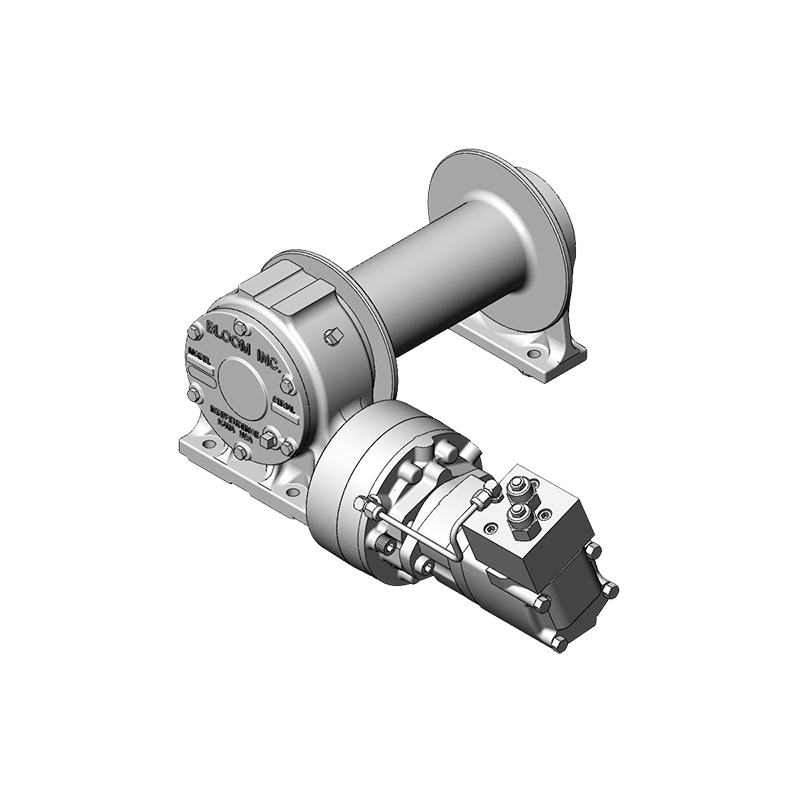

Models: LS10H Galv, LS10K Galv, LS10H Vanging Galv

Capacity: up to 12000 lbs

Lift-Safe® hydraulic winches are specifically designed for lifting applications and optimum load control . Engineered for enhanced safety with redundant braking systems, and available in a variety of configurations. Lift-Safe® winches utilize the DUET-SAFE® Double Action Braking System to provide both static and dynamic braking. Lift- Safe® winches offer increased operational flexibility, and superior load control in lifting applications. Series LS10H Galv and LSK10 Galv direct drive winches can be used on small cranes, rear load waste packers, drill rigs, fishing boats, marine craft, mining and logging operations. Series LS10H Vanging winches are used on fishing boats and marine craft.

Request More Information

Documents & Videos for the Series LS10 Galvanized

Series LS10 Galvanized Features

  • Gear Case

    Made of high strength cast iron. Completely sealed for oil enclosed operation and to keep dirt out.

  • Worm Shaft

    One piece alloy steel hardened and ground for extra durability. Compact design allows hydraulic motor to be coupled directly to worm.

  • Worm Gear

    High tensile aluminum-nickel alloy bronze. Optimum lead and pressure angles transmit maximum power to the drum.

  • Gear Ratio

    20:1 standard, 10:1, 27:1, 40:1 optional ratios provide optimum efficiency in power and speed.

  • Bearings

    Worm gear and worm shaft run on tapered roller bearings. Outer end housing has sealed ball bearing.

  • Drum Shaft

    1-1/2” diameter heat-treated alloy steel minimum tensile strength 150,000 psi.

  • Cable Drum

    Tough all steel construction resists breakage or warping.

  • Motor-Brake

    DUET-SAFE® Double Action Braking System combines a powerful spring applied, hydraulic released motor-brake with a double counter balance brake valve to automatically hold loads when hydraulic pressure is released and control speed during lowering operations. Winch is ideal for high-speed pulling applications or wherever load holding is critical.
